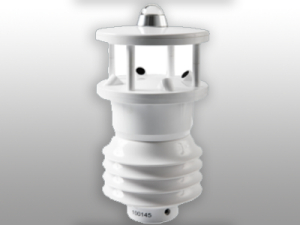

WS700 weather transmitter

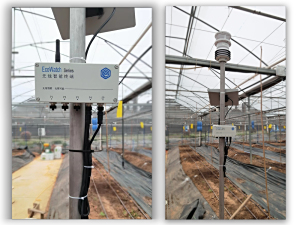

Application scenarios:

modern agricultural parks, ecological environment monitoring stations; Ports, wharves, tunnels; Photovoltaic power station, meteorological observation field;

The WS700 microweather station is a high-precision integrated weather sensor that can simultaneously measure seven meteorological parameters: wind speed, wind direction, ambient temperature, air relative humidity, atmospheric pressure, rainfall and total solar radiation. Plastic shell design, compact and beautiful structure, easy to install and maintain. IP66 protection grade, DC8~30V wide voltage power supply, standard RS485 output mode. The ECOW3000 series wireless data collector is configured for online continuous monitoring.

Performance characteristics

• The seven meteorological parameters are integrated on one device, which is highly integrated and easy to install;
• After the third-party professional organization test, accuracy, stability, anti-interference and so on are strictly guaranteed;
• Can work in complex environment, maintenance free;
• Compact structure, modular design, can be deeply customized transformation;
• Optional GPS, electronic compass for vehicle, ship and sea buoys.

Technical parameter

Host part

• Operating temperature: -30℃ ~ +85℃
• Power supply: 8~30VDC
• Output signal type: RS-485
• Protection level: IP66

Wind speed

• Measuring range: 0~ 50m/s (0~75m/s optional)
• Wind speed: 80m/s (30 minutes)
• Resolution: 0.1m /s
• Accuracy: ±0.2m/s (0-10m/s), ±2% (>10m/s)

Wind direction

• Measuring range: 0~360°
• Resolution: 1°
• Accuracy: ±1°

Air temperature

• Measuring range: -30~85℃
• Resolution: 0.1℃
• Accuracy: ±0.2℃

Relative humidity of air

• Measuring range: 0-100%(0~80℃)
• Resolution: 1%
• Accuracy: ±2%RH

Atmospheric pressure

• Measuring range: 800-1200hPa
• Resolution: 0.1hPa
• Accuracy: ± 0.5hPa (-10℃~50℃)

raininess

• Measuring range: 0-23mm/min
• Resolution: 0.1mm/min
• Accuracy: 0.5mm/min

rainfall

• Measuring range: 0-2038mm
• Accuracy: 0.5mm

Total solar radiation

• Measuring range: 0-2000W/m2 Resolution: 1W/ m2
• Sensitivity: 7-13μV/㎡
• Annual stability: ± 2% relative humidity
