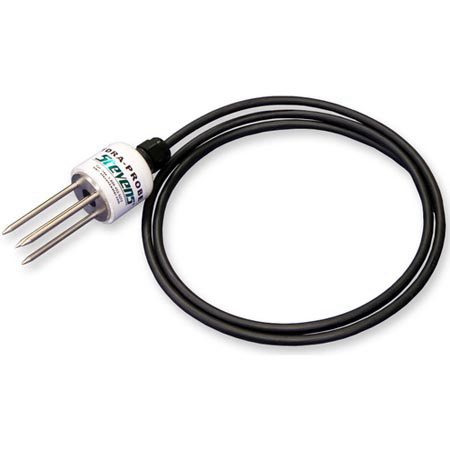

Hydra ProbeⅡ Soil three-parameter sensor

The Hydra Probe II is a new three-parameter soil sensor from Stevens. An upgrade of the original Hydra Probe soil three-parameter sensor, the Hydra Probe II soil sensor provides increased measurement accuracy and supports SDI-12 and RS-485 communication protocols, giving you more choices. Unlike other soil sensors, the Hydra Probe Ⅱ soil sensor combines a variety of measurement elements in one measurement to obtain soil moisture, conductivity, salinity and soil temperature data, saving you a lot of valuable time.

The Hydra Probe II uses a compact integrated design, excellent design and superb manufacturing process to adapt to long-term field measurement work without special maintenance.

Product characteristics

• Simultaneous measurement of soil moisture, conductivity, salinity and soil temperature
• It can adapt to the high saline-alkali soil environment
• Instant response, fast measurement
• It has been tested by practice for ten years and the technology is mature
• Good compatibility with most data collectors
• Compact design, easy to carry, durable
• Easy to use, maintenance-free

Technical parameter

Range and accuracy:

                Dielectric constant: 1 ~ 78, air = 1, distilled water = 78; ±1.5* or 0.2 (whichever is greater)

                Soil moisture: dry to saturation; + / - 0.03

                Soil conductivity: 0.01 ~ 1.5 S/m; ±2.0* or 0.005 S/m (whichever is greater)

                Soil temperature measurement range: -10 ~ 65℃; Plus or minus 0.1 ℃

Power supply: 9 ~ 20VDC

Communication protocol: SDI-12, RS-485

Cable length: 60m (SDI-12), 1219m (304.8m without connector)

Power consumption: SDI-12 <1mA when hibernating, 30mA when working;

RS-485 <10mA when hibernating, 30mA when working;

Baud rate: 1200 (SDI-12), 9600 (RS-485);

Working temperature: -10 ~ 65℃, 0 ~ 65℃ (in soil);

Size: 12.4cm long, 4.2cm diameter;

Weight: 200g以上翻译结果来自有道神经网络翻译（YNMT）· 通用场景
